WiFi/GPRS/GSM Home Alarm+Camera -W20 Plus
Description
Features:
* Creative design. RED-DOT Award /2020
* GSM/GPRS networks backup once WiFi disconnect.
* 32 wireless zones+ 32 wireless sensors+ 8 remote
controllers + 8 RFID tags + 8 sockets + 8 light switches
* 11 kinds of zone typies can be set.
* CID/SIA protocols + CMS available.
* Panel/sensor status check-out/notified real time.
* Android/IOS application available.
* Multi-languages available.
* Firmware upgrade available
Parameters:
| Power | lithium battery | Built-in siren |
|---|---|---|
| 140mm*192mm*27.1mm DC 5V/0.5A |
DC 3.7V 800mAh/8 Hours |
>85dB |
| WiFi standard | WiFi frequency | WiFi encryption mechanism |
| 802.11b/g/n | 2.4G | WEP/WAP-PSK/ WAP2-PSK |
| Network Protocols |
Wireless Frequency |
Working Environment |
| IPv4,TCP/UDP/HTTP | 433MHz | -10°C~ +50°C Humidity:40%~70% |

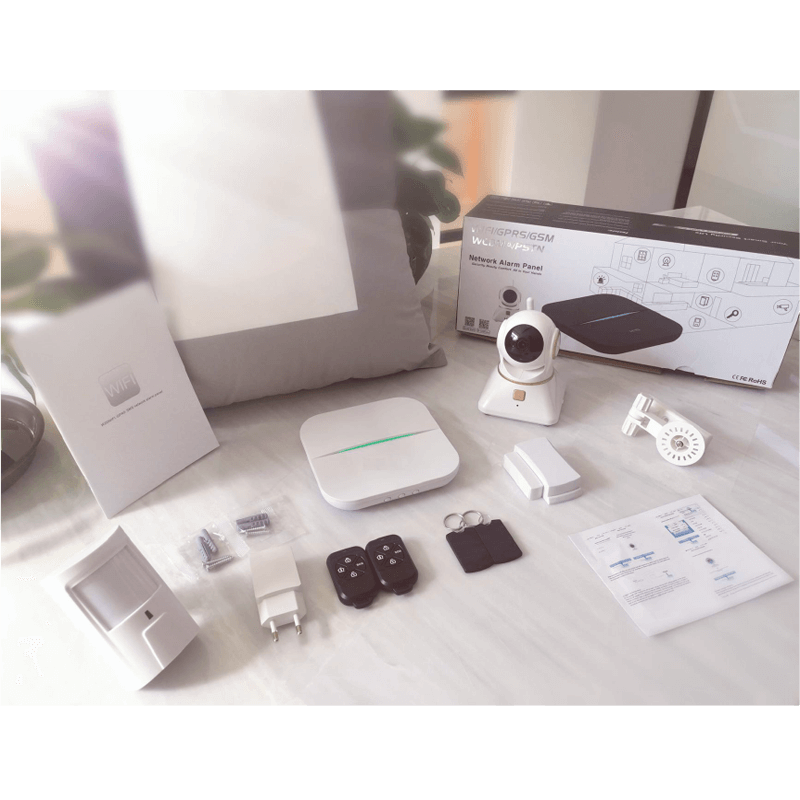

Standard Kit:
24 Sets/Carton (46.5*42.5*37.5 cm)
| HY-G1S | HY-320A/B | HY-20A/B | HY-11/12A | HY-6121 |
 |
||||
| x1 | x1 | x1 | x2 | x2 |
